Interlocking plank system
A tongue-and-groove joint gives a firm, sealable connection along the plank length.
Captrad Composites
GRP Deck 500
GRP Product
GRP Deck 500 for demanding projects
Interlocking, solid-top pultruded GRP Deck 500 planks for walkways, bridge decks, covers and treatment-site access.
Captrad combines practical product knowledge, stocked GRP materials and bespoke manufacturing capability to help customers specify a solution that is reliable, durable and appropriate for the application.
- Corrosion-resistant composite performance
- Lightweight and practical to install
- Support for standard or bespoke requirements
- UK-wide delivery from Captrad
Deck 500 product details
A purpose-made solid-top plank system
Deck 500 is distinct from moulded grating: it is an interlocking, pultruded GRP plank system with a solid gritted surface for specified access and cover applications.
Technical guidance
Deck 500 load-table guidance

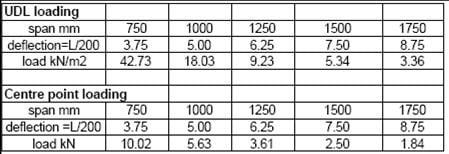

The Deck 500 guide shows uniform and centre-point loading data for clear spans from 750 to 1,750 mm. The existing product guidance states that Deck 500 can span 1.5 m at a design load of 5 kN/m² with a deflection limit of L/200.
Load data is indicative only. Confirm the final span, support arrangement, loading, deflection requirement, edge detail and installation method with Captrad for the individual project.
Request Deck 500 technical informationWhy choose Captrad
Practical benefits of GRP Deck 500
Built around project requirements, working environments and long-term performance.
Solid gritted walking surface
The solid-top profile is finished with an anti-slip surface for practical access areas.
Load data available
Indicative uniform and centre-point loading data helps start a project discussion.
Suitable for wet environments
A durable composite option for water, wastewater and other exposed installations.
Where it works
Industries that use GRP Deck 500
Captrad works with customers who need reliable, practical composite solutions for challenging projects. We’ll help assess suitability for your environment and performance requirements.
Discuss your applicationWater & wastewater
Odour-control covers, tank baffles and treatment-site walkways.
Bridges & access routes
Pedestrian bridge decks, maintenance routes and mezzanine flooring.
Industrial facilities
Solid access surfaces around plant, cooling towers and operational areas.
Flood & water control
Plank systems for stop locks, barriers and related civil-engineering works.
Battery energy storage systems (BESS)
Specified Deck 500 can support durable maintenance access around containers and associated infrastructure.
Solar farms
A practical solid-top access surface where project design calls for it around solar infrastructure.
Data centres
Specified for external plant and service-area access where a solid composite deck is suitable.
Rail
Suitable for specified trackside and infrastructure access applications.
The Deck 500 system
Solid-top interlocking GRP decking for access, covers and walkways

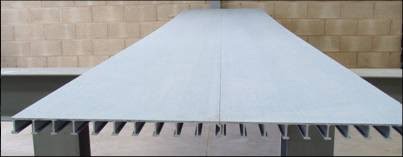

Deck 500 is a one-piece pultruded GRP profile, 500 mm wide and 40 mm deep, with a tongue-and-groove joint running along each plank. The joint produces a firm, sealable connection between lengths, creating a continuous solid-top surface for project-specific access and cover applications.
The profile has a gritted anti-slip surface and can be considered for mezzanine floors, walkways, pedestrian bridge decks, odour-control covers, cooling-tower covers, water-treatment baffles, stop locks and flood-defence barriers. Final selection should always take account of the span, support arrangement, load, surface finish and site interfaces.
Typical Deck 500 applications

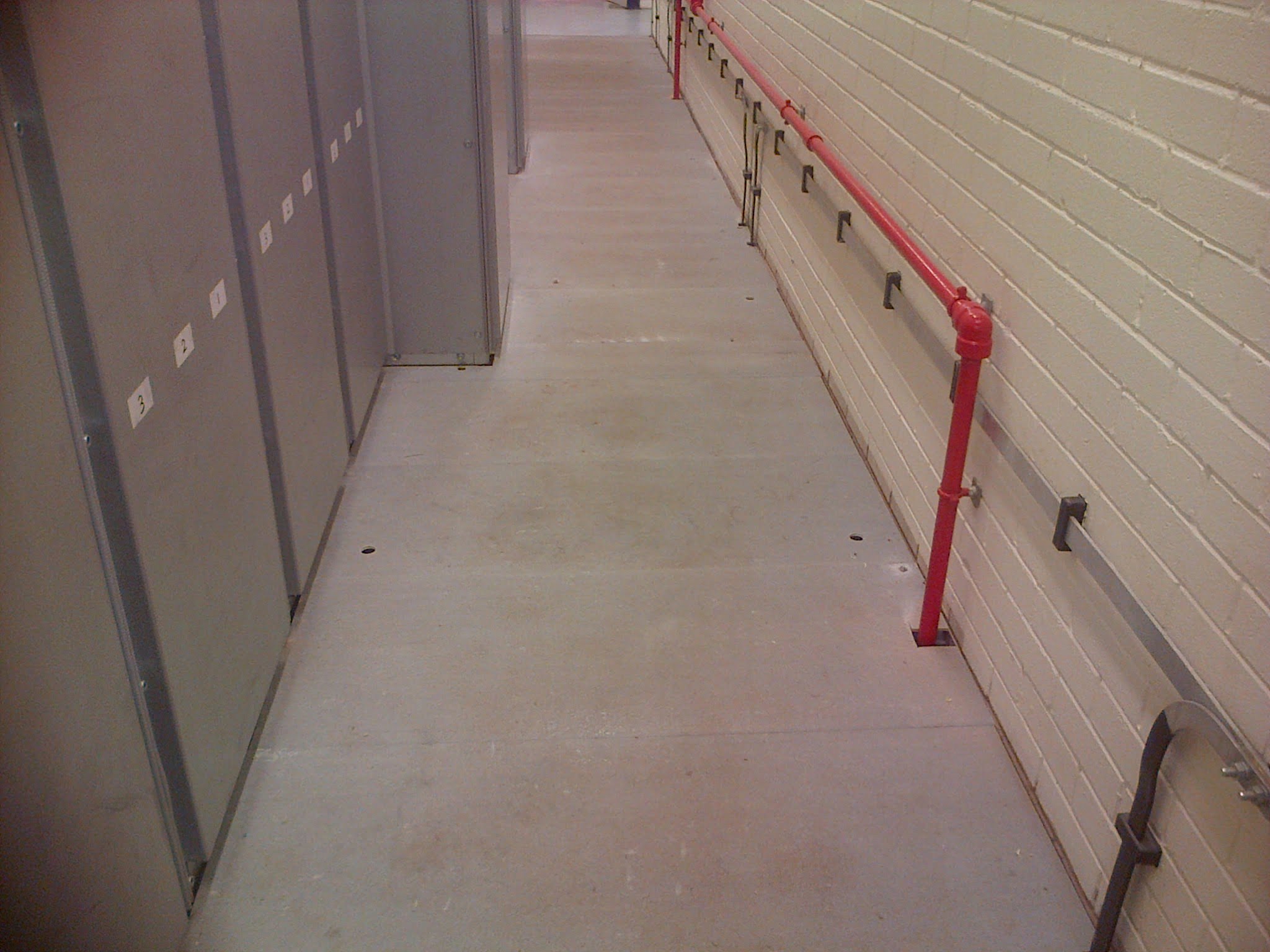

- Walkways, mezzanine floors and pedestrian bridge decks
- Odour-control covers for potable-water and wastewater treatment units
- Cooling-tower covers and water-treatment-tank baffles
- Stop locks, flood-defence barriers and industrial access surfaces
Interlocking plank system
A solid-top GRP deck for access and cover applications
GRP Deck 500 is an interlocking pultruded plank system designed for practical access, cover and decking applications. Its one-piece, solid-top construction can be considered where a durable composite surface is needed across walkways, treatment-site covers, bridge decks and similar project areas.
The finished arrangement depends on the application, span, support layout, required surface finish and installation interfaces. Send plans, dimensions, support information and quantities to Captrad so the team can discuss whether Deck 500 is suitable for your project.
- Interlocking solid-top pultruded GRP planks
- Walkways, bridge decks and maintenance routes
- Water and wastewater covers and treatment-site access
- Project-specific advice on support, layout and quantities
Suitable applications
GRP Deck 500 can support commercial, industrial and infrastructure projects where safety, durability and long-term performance matter. Our team can help consider environment, dimensions, quantities, finishes and installation requirements.
- Construction and civil engineering
- Utilities, water and wastewater
- Rail, marine and offshore
- Industrial processing facilities
- Commercial access and safety projects
Product advice & quotations
Share your requirements with Captrad to discuss availability, material options and a tailored quotation. Include any drawings, dimensions, performance requirements or delivery timescales that will help us advise accurately.
Project questions
GRP Deck 500 FAQs
Answers to the questions our technical sales team is most often asked.
What is GRP Deck 500?
GRP Deck 500 is a one-piece pultruded, solid-top GRP plank system. Each plank is 500 mm wide and 40 mm deep, with a tongue-and-groove joint along its length to form a firm, sealable deck surface.
What is Deck 500 used for?
It can be considered for walkways, mezzanine floors, pedestrian bridge decks, odour-control covers, cooling-tower covers, water-treatment baffles, stop locks and flood-defence barriers, subject to the project design.
How do Deck 500 planks join together?

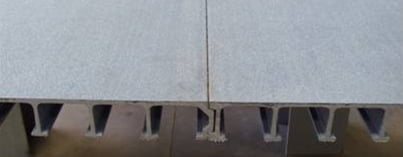

The pultruded planks use a continuous tongue-and-groove joint. This connects adjacent planks along their length and can provide a firm, sealable joint where the installed detail calls for it.
What span and load can Deck 500 achieve?
The Deck 500 technical guidance includes uniform and centre-point load data at clear spans from 750 to 1,750 mm. The existing product guidance states that the system can span 1.5 m at a design load of 5 kN/m² with a deflection limit of L/200; final support and loading must be checked for the individual project.
Is Deck 500 slip resistant?
Yes. Deck 500 has a gritted anti-slip solid-top surface. Confirm the finished surface requirement and site conditions with Captrad when specifying the system.
Can Deck 500 be used in water and wastewater environments?
Yes. It is commonly considered for odour-control covers, potable-water and wastewater-treatment-unit covers, cooling towers and tank baffles. The final arrangement should be designed around the process area, supports and access needs.
What information is needed for a Deck 500 quotation?
Please provide drawings, deck area, required plank direction, clear spans, support arrangement, intended loading, edge details, quantities, site environment and delivery requirements.
