Standard diameter & length range
Filament-wound pipe can be supplied from 250 mm to 1200 mm diameter in standard lengths up to 12 m. Plain and built-up pipe ends are available for compatible joint systems.
Captrad Composites
GRP Pipes & Plastic Pipes
Associated Product
GRP Pipes & Plastic Pipes for demanding projects
Filament-wound GRP pipe systems for water, wastewater, industrial-process and corrosive fluid applications.
Captrad combines practical product knowledge, stocked GRP materials and bespoke manufacturing capability to help customers specify a solution that is reliable, durable and appropriate for the application.
- Corrosion-resistant composite performance
- Lightweight and practical to install
- Support for standard or bespoke requirements
- UK-wide delivery from Captrad
The established GRP pipe range
GRP pipe systems for water, wastewater and industry
The original Captrad GRP Pipes information, technical data and product guide have been transferred to this page.
Captrad supplies filament-wound GRP pipes for public, utility and industrial applications where corrosion resistance, mechanical performance and straightforward installation matter. The system can be considered for underground, surface and selected underwater pipe routes.

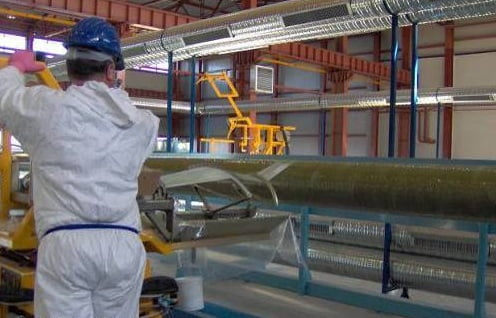

Pipe is manufactured in two controlled stages: a chemical barrier is first formed on a rotating mandrel, then bidirectional filament-wound structural layers are built up to the required wall thickness. Above-ground pipe can include an external layer for UV, weathering and external-corrosion protection.
Typical GRP pipe applications
- Sewerage systems and sewage treatment
- Distribution of public and industrial drinking water
- Cooling-water supply systems
- Industrial-process pipework
- Seawater transport and desalination
- Petroleum-product and gas transportation
- Chemical-solution routes up to 100°C
Pipe specification
Diameter, pressure, stiffness and connections
Select the pipe around its operating conditions, installation arrangement and the fluid being carried.
Pressure & stiffness
Pipes can be made in pressure ratings up to 32 bar. The established range lists PN1, PN6, PN10 and PN16 with SN2500, SN5000 and SN10000 stiffness factors; selected diameters are available at PN20, PN25 and PN32.
Wall thickness and filament-winding pattern are adjusted around hoop, longitudinal, negative-pressure and burial loads. Pipe can be supplied to relevant BS, EN and ASTM pressure and stiffness standards.
Joint systems & fittings
Pipe can be supplied plain ended for proprietary joints, including Viking Johnson, or with a double-ring sleeve coupler (Reka type). Joints carry the same pressure rating as the pipe.
Matching bends, reducers, tees and Ys can be manufactured from laminated pipe sections to suit the required pressure, stiffness and route geometry.
Why GRP pipe
Advantages over steel and concrete pipe
The established GRP pipe range offers a lightweight, corrosion-resistant alternative where the pipe material needs to perform over the long term in difficult service conditions.
- Corrosion resistance with the correctly selected resin
- No rust and no need for cathodic protection
- Smooth bore to support lower pumping costs
- Low maintenance and practical long-term handling
- Low weight compared with steel and concrete
- Lengths up to 12 m for lower transport and handling requirements
- Fewer joints for quicker installation and fewer potential leakage points
Why choose Captrad
Practical benefits of GRP Pipes & Plastic Pipes
Built around project requirements, working environments and long-term performance.
Corrosion-resistant pipework
A practical option for chemically demanding fluid, drainage and wastewater services.
Lower handling weight
Established product guidance describes a pipe weight around one quarter of steel and one tenth of concrete.
Long pipe lengths
Lengths up to 12 m can reduce joints, handling and potential leak paths.
Configurable systems
Resin, stiffness, pressure rating, end preparation, joints and fittings can be selected around the service.
Where it works
Industries that use GRP Pipes & Plastic Pipes
Captrad works with customers who need reliable, practical composite solutions for challenging projects. We’ll help assess suitability for your environment and performance requirements.
Discuss your applicationWater & wastewater
Drinking water, sewerage, treatment and cooling-water pipework.
Industrial process
Chemical solutions, process systems and difficult fluids.
Marine & desalination
Seawater transport and desalination infrastructure.
Energy & fuel
Specified pipework for petroleum-product and gas transport applications.
Filament-wound pipe systems
GRP pipework configured for the fluid, pressure and environment
Captrad GRP pipe is a filament-wound system suited to water, wastewater, industrial-process and corrosive-fluid applications. The established range combines chemical resistance with glass-fibre-reinforced mechanical strength for underground, surface and selected underwater installations.
Pipe can be supplied from 250 mm to 1200 mm diameter in lengths up to 12 m, with plain or built-up ends for proprietary joint systems. Resin selection, pressure rating, stiffness and external finish can be discussed around the fluid, service conditions and installation method.
Where GRP pipe is used
- Sewerage systems and urban or industrial treatment works
- Drinking-water distribution and cooling-water systems
- Industrial process, chemical and corrosive-fluid pipework
- Seawater, desalination, petroleum-product and gas-transport routes
Suitable applications
GRP Pipes & Plastic Pipes can support commercial, industrial and infrastructure projects where safety, durability and long-term performance matter. Our team can help consider environment, dimensions, quantities, finishes and installation requirements.
- Construction and civil engineering
- Utilities, water and wastewater
- Rail, marine and offshore
- Industrial processing facilities
- Commercial access and safety projects
Product advice & quotations
Share your requirements with Captrad to discuss availability, material options and a tailored quotation. Include any drawings, dimensions, performance requirements or delivery timescales that will help us advise accurately.
Project questions
GRP Pipes & Plastic Pipes FAQs
Answers to the questions our technical sales team is most often asked.
What sizes can GRP pipe be supplied in?

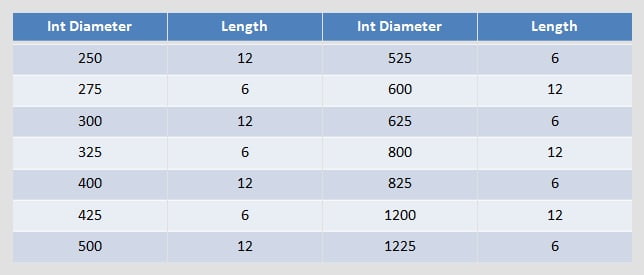

The established Captrad range covers filament-wound pipe from 250 mm to 1200 mm diameter, in lengths up to 12 m. The pipe-size chart on this page shows the standard diameter and length combinations.
What pressures and stiffness ratings are available?
Pipes can be made in pressure ratings up to 32 bar. The established information lists PN1, PN6, PN10 and PN16 with SN2500, SN5000 and SN10000 stiffness factors, with selected diameters available at PN20, PN25 and PN32.
Which resin systems can be specified?
Orthophthalic polyester, isophthalic polyester and vinyl-ester resin systems can be discussed depending on the fluid and corrosive-service conditions.
Which joint systems and fittings are available?
Pipe can be supplied plain ended for proprietary joints such as Viking Johnson, or with a double-ring sleeve coupler (Reka-type joint). Bends, reducers, tees and Ys can be manufactured to suit the required pressure and stiffness rating.
Why choose GRP pipe rather than steel or concrete?
GRP can offer corrosion resistance, low weight, smooth-bore flow characteristics, long lengths and fewer joints. The final material choice should be based on the fluid, pressure, route and service conditions.
