GRP grating panels for floors, walkways and platforms

GRP grating is a glass-reinforced plastic flooring panel, also known as fibreglass grating. It combines low weight and corrosion resistance with a gritted walking surface for industrial access, maintenance routes and platforms.

Captrad supplies open-mesh, solid-top and mini-mesh grating, with standard panel sizes, depths and colours shown below. Our team in Skelmersdale can help you compare the range, discuss cut-to-size requirements and plan UK-wide delivery.

  • Open-mesh panels in 13, 25, 38 and 50 mm depths
  • Solid-top and mini-mesh options for different walking surfaces
  • Panel sizes, colours and load-table guidance in one place
  • Advice on spans, fixing clips and project quantities

Shop open-mesh and solid-top panels

Gritted open-mesh GRP grating panels from Captrad

Compare the range

Choose the right GRP grating panel

Start with the walking surface and aperture, then check the load, span and support requirements for the finished floor.

Covered surface

Solid-top GRP grating

A covered, gritted walking surface where an open mesh is unsuitable. Consider the surface, drainage and maintenance requirements alongside the panel support design.

Explore solid-top grating

Smaller openings

Mini-mesh marina grating

A finer grid for projects that call for smaller openings, including specified marina and wet-access applications. Aperture, footwear and load requirements all influence selection.

Explore mini-mesh grating

For specialist loading, explore high-load GRP grating. For pultruded grating, ask Captrad about the load-bearing direction, panel format and support layout needed for your project.

Standard stock range

GRP grating panel sizes and colours

The standard stock table below covers open mesh, solid-top and mini-mesh marina grating. Panel dimensions are shown in millimetres.

Light grey, dark grey, yellow and green colour options are available across the listed standard panel range. Confirm the required mesh, thickness, finish, panel size and quantity with Captrad before ordering.

Check load-table guidance

Light Grey

LG · RAL 7047

Dark Grey

DG · RAL 7043

Yellow

Y · RAL 1006

Green

GRN · RAL 6010

Open mesh grating

Standard open-mesh panels with a gritted finish for practical anti-slip access surfaces.

Open mesh grating standard stock panel sizes and colours
Thickness (mm)Mesh (mm)FinishPanel size (mm)Colour
1350 × 50Gritted1220 × 3660LG
2538 × 38Gritted1000 × 2000; 1000 × 3000; 1220 × 3660LG, Y, GRN
3838 × 38Gritted1000 × 2000; 1000 × 3000; 1220 × 2440; 1220 × 3660LG, DG, Y, GRN
5050 × 50Gritted1220 × 3660LG, Y, GRN

Solid-top grating

Gritted solid-top panels where a more closed walking surface is required.

Solid-top grating standard stock panel sizes and colours
Thickness (mm)Mesh (mm)FinishPanel size (mm)Colour
2938 × 38Gritted1220 × 3660LG
4138 × 38Gritted1220 × 3660LG
5450 × 50Gritted1220 × 3660LG

Mini-mesh marina grating

Fine mesh grating supplied in light grey for wet and specialist access environments.

Mini-mesh marina grating standard stock panel sizes and colours
Thickness (mm)Mesh (mm)FinishPanel size (mm)Colour
1412 × 12Gritted1247 × 4047LG
3012 × 13Gritted1247 × 4047LG
3812 × 14Gritted1247 × 4047LG

Stock data is supplied as a guide. Availability, panel direction, surface finish, loading, cutting and project suitability should be confirmed with Captrad before specification or order.

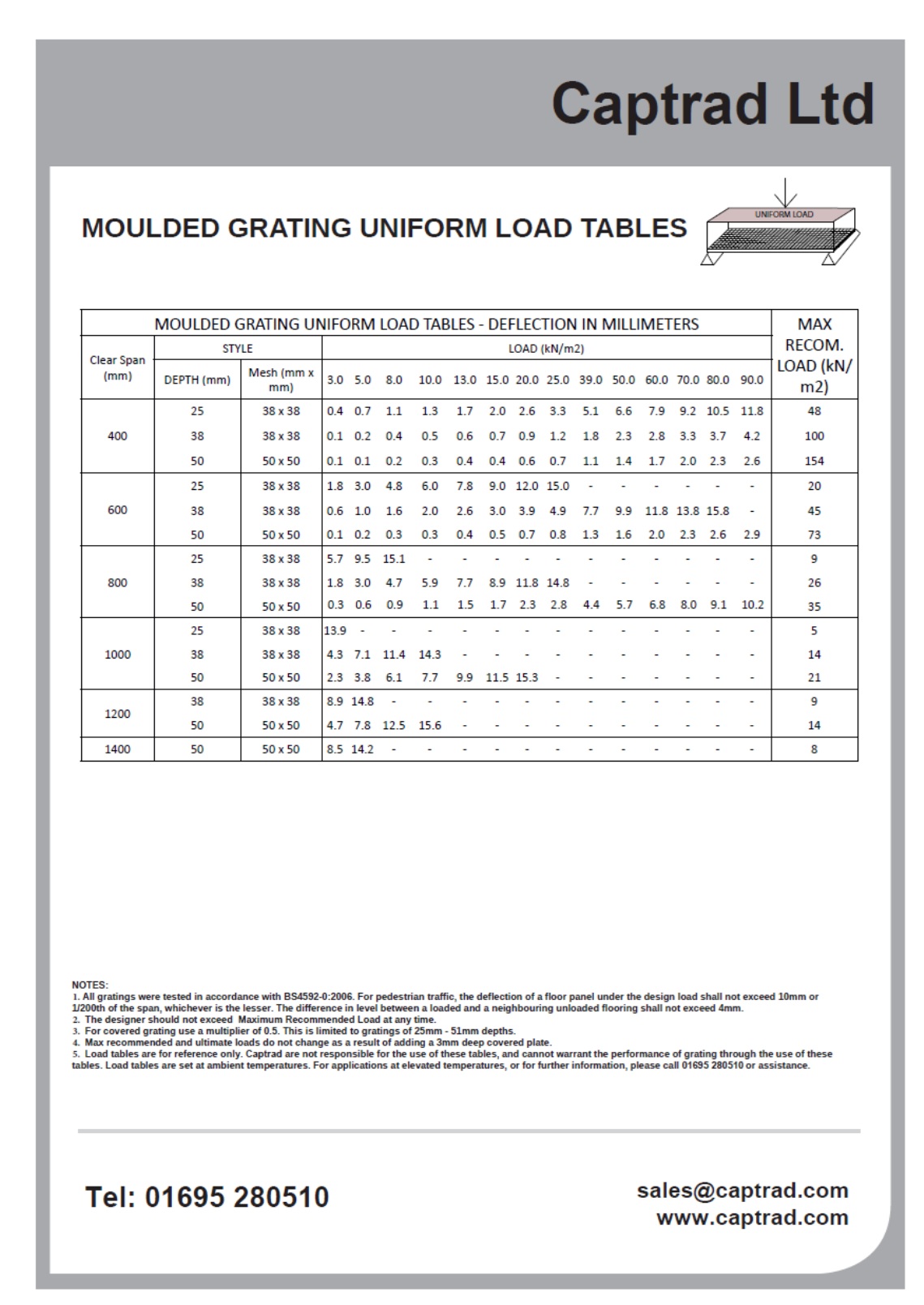

GRP grating moulded uniform load table guidelines
GRP grating load-table guidelines

Technical guidance

GRP grating load-table guidelines

The guide provides indicative moulded-grating uniform-load data and deflection guidance across common clear spans, mesh sizes and panel depths. It is intended to help start a technical conversation, not replace project-specific design checking.

Load performance depends on the selected grating style, support arrangement, span, finish, environment and application. Send Captrad the clear span, intended loading, support layout and site requirements so the correct panel can be considered.

Request GRP grating load-table PDF

The downloadable PDF is supplied for guidance. Confirm the final specification with Captrad for your application.

Why choose Captrad

Practical benefits of GRP Grating

Built around project requirements, working environments and long-term performance.

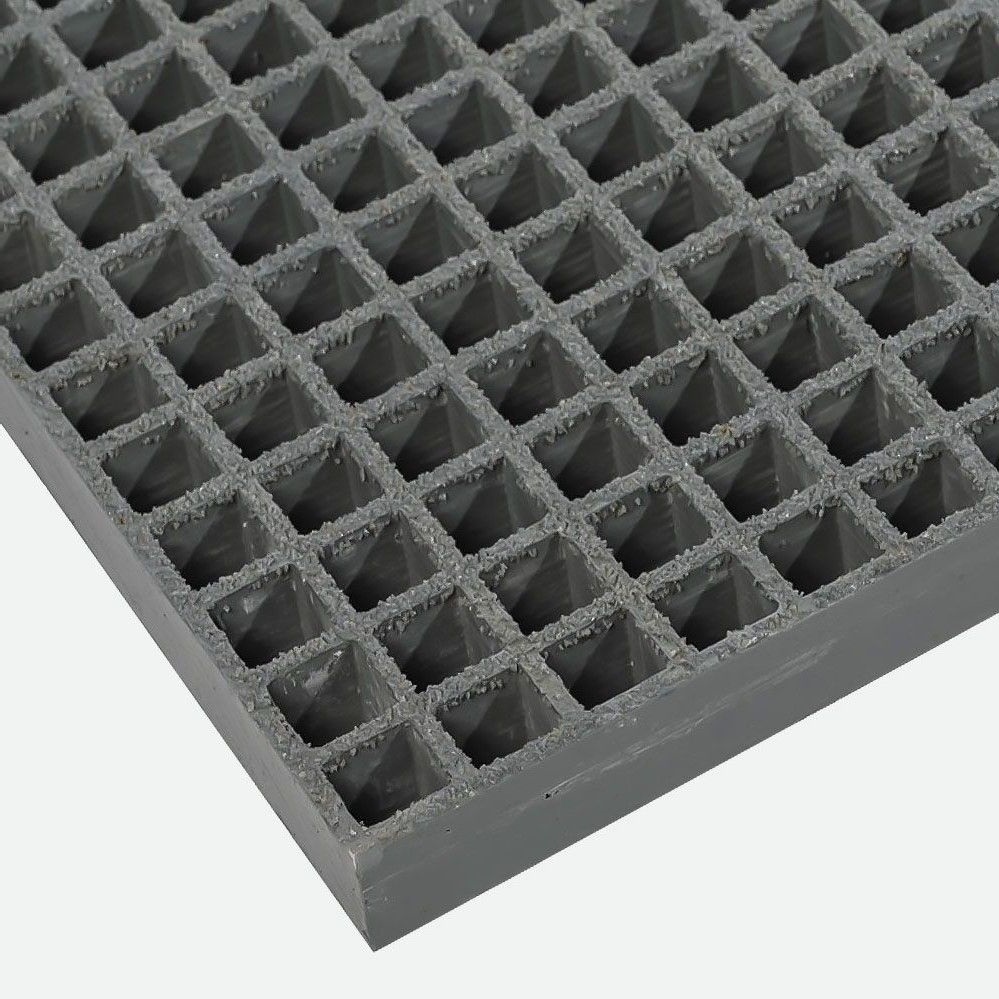

Gritted walking surfaces

Open-mesh, mini-mesh and solid-top formats let you match the walking surface to the application.

Corrosion-resistant flooring

A practical alternative to metal grating for wet and exposed locations, with the resin selected for the environment.

Panel sizes you can plan around

Published dimensions, mesh sizes, depths and colours help you prepare a panel layout and enquiry.

Advice before you order

Discuss loading, clear spans, supports, fixing details and cutting requirements with the Captrad team.

Where it works

Industries that use GRP Grating

Captrad works with customers who need reliable, practical composite solutions for challenging projects. We’ll help assess suitability for your environment and performance requirements.

Discuss your application

Manufacturing & processing

Practical GRP products for active industrial environments and specialist applications.

Request brochure access

Battery energy storage systems (BESS)

Can support safe, corrosion-resistant access around battery containers, inverters and maintenance areas.

Request brochure access

Solar farms

Helps provide practical access around arrays, inverters, substations and solar-site maintenance areas.

Request brochure access

Data centres

Supports safe access to plant rooms, service areas and external equipment zones where specified.

Request brochure access

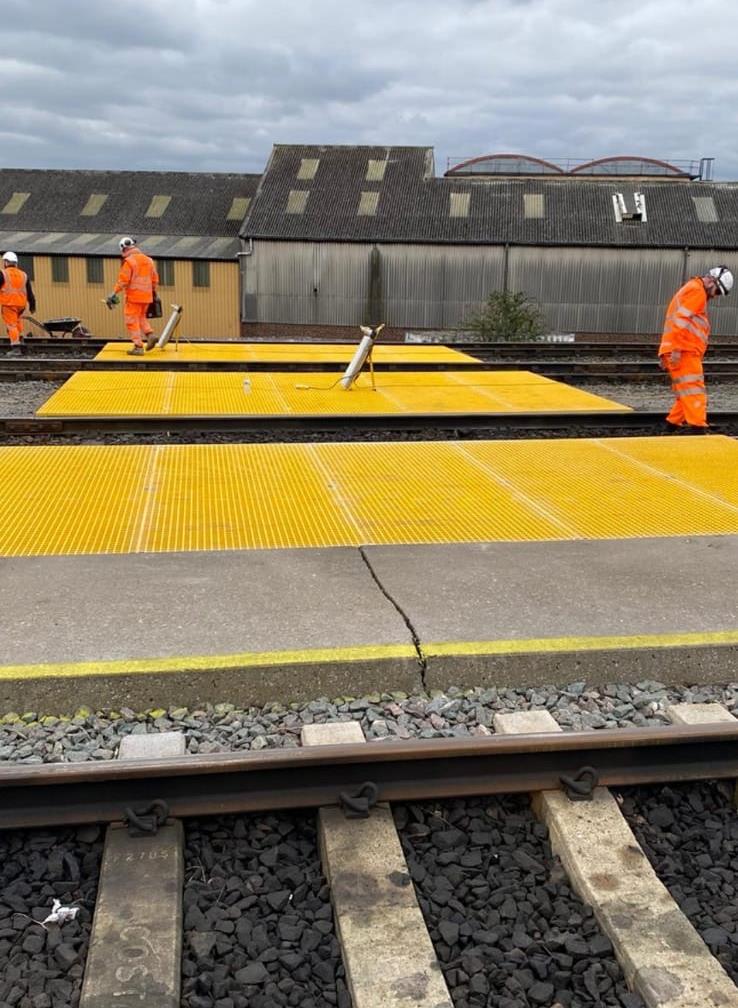

Rail

Specified GRP products can support durable access, cable-management and infrastructure requirements across rail projects.

Request brochure access

Flooring and access

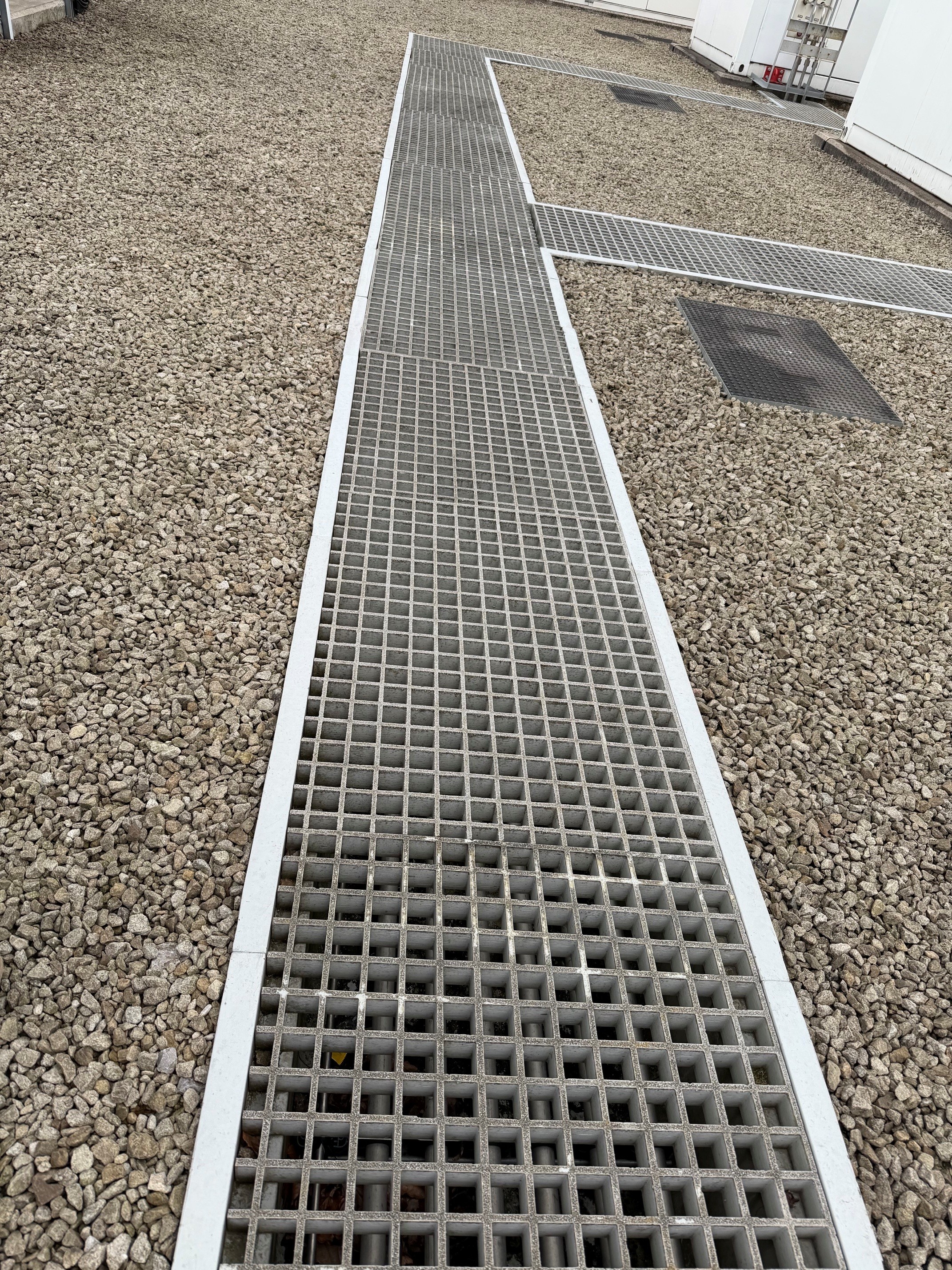

GRP grating systems for industrial walkways and platforms

A grating system is more than the panel alone. Its performance depends on the selected panel, support structure, edge details and fixings working together. Moulded GRP grating uses a grid of glass-fibre reinforcement and resin; pultruded grating uses load-bearing profiles with a defined span direction. Confirm the appropriate construction for the layout rather than treating the two as interchangeable.

GRP is often considered for flooring where moisture, weather exposure or corrosion make metal maintenance a concern. Select the resin, surface and mesh around the actual working conditions, including chemicals, footwear, drainage and cleaning. Where a project specifies fire or slip-test performance, request the data for the exact product being supplied.

Common grating applications

  • Industrial walkways, access platforms and maintenance routes
  • Water and wastewater treatment access floors
  • Marina walkways and exposed coastal access areas
  • Service risers and plant-area flooring, with a suitable support design

Specify the complete floor

Load capacity, supports and grating fixings

Start with the clear distance between supports and the design load. A walkway carrying pedestrians, a maintenance platform with equipment and an area carrying wheeled loads can require different panel and support arrangements.

The GRP grating load-table guidance explains indicative uniform loading and deflection. Confirm concentrated loads, cut-outs, bearing details and the load direction where relevant. A thicker panel alone does not establish the capacity of the finished floor.

Plan GRP grating clips and fixings with the supporting structure. Tell us which panels need to be removable and where openings, changes of level or exposed edges occur. For a complete access arrangement, see our GRP platforms and walkways and GRP handrail systems.

Plan your order

GRP grating prices and project quotations

For standard products, view open-mesh and solid-top grating in the shop and select the required options to see current prices. Mini-mesh, specialist panels and complete layouts can be discussed with the sales team.

For cut-to-size GRP grating or a larger flooring project, send a dimensioned drawing, panel quantity, preferred colour and delivery postcode. Include support positions, loading and any cut-outs so the quotation can cover the required panel layout and fixings.

Working around a riser opening? Our service-riser grating page covers ready-to-fit panels and support systems. For other floor finishes, compare the wider GRP flooring range.

Discuss your grating specification

Project questions

GRP Grating FAQs

Panel selection, load capacity, fixings, prices and ordering.

What is GRP grating?

GRP grating is a glass-reinforced plastic panel, also called fibreglass grating, used to form flooring, walkways and access platforms. Glass fibres and resin create a corrosion-resistant composite; the mesh, depth and surface finish are selected for the application.

What is the difference between open mesh, mini mesh and solid top GRP grating?

Open-mesh grating has an open grid that allows water and debris to pass through. Mini mesh uses smaller openings; solid-top grating has a covered walking surface. The choice depends on drainage, the items that could pass through, the users and the project specification.

What GRP grating panel sizes and colours are available?

The standard range on this page includes open-mesh panels in sizes such as 1000 × 2000, 1000 × 3000, 1220 × 2440 and 1220 × 3660 mm, depending on depth. Solid-top and mini-mesh sizes are listed separately, with colour options shown for each format. Confirm current availability before ordering.

How do I choose between 25 mm, 38 mm and 50 mm GRP grating?

Choose the panel depth using the clear span, support arrangement, intended loading and permitted deflection, rather than thickness alone. The open-mesh stock range includes 13, 25, 38 and 50 mm depths; refer to the load-table guidance and have the final panel selection checked for the project.

How much load can GRP grating support?

There is no single load capacity for all GRP grating. Panel construction, mesh, depth, span and support conditions affect performance, and a uniformly distributed load is different from a concentrated load. Share the design loading and clear spans with Captrad and use the load-table PDF for the relevant panel.

Is GRP grating slip resistant?

The standard panels listed on this page have a gritted finish intended to improve grip. Suitability still depends on the surface condition, contamination, footwear and maintenance. Request any required slip-test data for the exact finish specified.

Can GRP grating be cut to size?

Discuss cut-to-size panels, openings and fabrication with Captrad using a dimensioned drawing. Cutting can affect the supporting grid and edge detail, so the finished panel layout, supports and any edge treatment should be agreed before manufacture or on-site cutting.

What clips or fixings are needed for GRP grating?

The fixing arrangement depends on the panel type, supporting material, layout and service conditions. Captrad supplies grating clips and can discuss an appropriate arrangement; provide the support drawing and any removable-panel or uplift requirements.

How much does GRP grating cost?

Price depends on the panel type, dimensions, depth, finish, quantity and any cutting or fixings. Use the online shop for current open-mesh and solid-top product options and prices, or request a quotation for a project layout, mini-mesh panels or specialist requirements.

How quickly can you supply GRP grating in the UK?

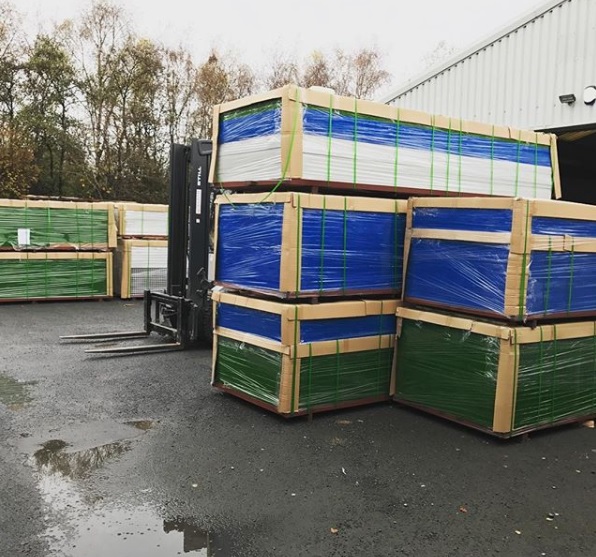

Captrad stocks a standard grating range and arranges UK-wide delivery. Availability and lead time depend on the chosen panels, quantity, cutting requirements and destination, so confirm the delivery date with the team when ordering.
